Interact and bigInteract Track Format

The interact (and bigInteract) track format displays pairwise interactions as arcs or half-rectangles connecting two genomic regions on the same chromosome. Cross-chromosomal interactions can also be represented in this format; the display shows the region on the currently viewed chromosome, with a vertical bar, labeled with the chromosome of the connected region (space permitting).

For directional interactions such as SNP/gene, the interactions in the reverse direction are displayed as a dashed line or curve. An alternative 'cluster' view can also be configured for directional interaction data. This view groups interactions by source or by target, producing a display of linked blocks.

This format is useful for displaying functional element interactions such as SNP/gene interactions, and is also suitable for low-density chromatin interactions, such as ChIA-PET, and other use cases with a limited number of interactions on the genome. It is not suitable for high-density chromatin data such as Hi-C.

The interact format is available as a standalone plain text bed5+13 format for use with smaller datasets as a custom track, and as a binary indexed format (bigInteract) suitable for track hubs and custom tracks. The bigInteract format provides more track customization features (i.e. schema customization), and is recommended for users who can use command-line tools and have web-accessible data storage. If you do not have web-accessible data storage, please see the Hosting section of the Track Hub Help documentation. Interact format files are converted to bigInteract files using the program bedToBigBed, run with the -as option to pull in a special autoSql (.as) schema file defining the fields of the bigInteract.

Interact format definition

The following autoSql definition illustrates the basic schema supporting interact (and bigInteract) tracks.

table interact
"interaction between two regions"
    (
    string chrom;        "Chromosome (or contig, scaffold, etc.). For interchromosomal, use 2 records"
    uint chromStart;     "Start position of lower region. For interchromosomal, set to chromStart of this region"
    uint chromEnd;       "End position of upper region. For interchromosomal, set to chromEnd of this region"
    string name;         "Name of item, for display.  Usually 'sourceName/targetName/exp' or empty"
    uint score;          "Score (0-1000)"
    double value;        "Strength of interaction or other data value. Typically basis for score"
    string exp;          "Experiment name (metadata for filtering). Use . if not applicable"
    string color;        "Item color.  Specified as r,g,b or hexadecimal #RRGGBB or html color name, as in //www.w3.org/TR/css3-color/#html4. Use 0 and spectrum setting to shade by score"
    string sourceChrom;  "Chromosome of source region (directional) or lower region. For non-directional interchromosomal, chrom of this region."
    uint sourceStart;    "Start position in chromosome of source/lower/this region"
    uint sourceEnd;      "End position in chromosome of source/lower/this region"
    string sourceName;   "Identifier of source/lower/this region"
    string sourceStrand; "Orientation of source/lower/this region: + or -.  Use . if not applicable"
    string targetChrom;  "Chromosome of target region (directional) or upper region. For non-directional interchromosomal, chrom of other region"
    uint targetStart;    "Start position in chromosome of target/upper/this region"
    uint targetEnd;      "End position in chromosome of target/upper/this region"
    string targetName;   "Identifier of target/upper/this region"
    string targetStrand; "Orientation of target/upper/this region: + or -.  Use . if not applicable"

    )
Column Explanations

The first 5 fields of the interact format are the same as the first 5 fields of the standard BED format. See a graphical depiction below of the columns.

When creating bigInteract files, we encourage you to customize the title and field descriptions of the prototype autoSql schema to better describe your data. Customizing this file will make your data more easily interpreted by users, who will see the field descriptions when accessing the track data from the Table Browser, when viewing items on the Genome Browser details pages (via the "view table schema" link), and (for users who download files), from the -as option of the bigBedInfo tool.

As an example, if the dataset represents SNP/gene interactions, replace 'sourceName' and related fields with 'snpName', etc, and 'targetName' and related fields with 'geneName', etc., editing the field descriptions to reflect the changes you make. For non-directional data such as ChIA-PET, one could use 'region1' and 'region2'.

As the browser display of this format only shows the paired region labels on mouseover, we recommend including a BED or other format file to display the source and target region labels.

Creating interact and bigInteract custom tracks

Example #1

In this example, you will create an interact custom track using example SNP/gene interaction data in multiple tissues. This example uses the interaction coloring and directionality features of the interact track type.

  1. Paste the following track line into the custom track management page for the human assembly hg19.

    track type=interact name="interact Example One" description="An interact file" interactDirectional=true maxHeightPixels=200:100:50 visibility=full
    browser position chr12:40,560,500-40,660,499
    #chrom  chromStart  chromEnd  name  score  value  exp  color  sourceChrom  sourceStart  sourceEnd  sourceName  sourceStrand  targetChrom  targetStart  targetEnd  targetName  targetStrand
    chr12    40572709      40618813        rs7974522/LRRK2/muscleSkeletal  0       0.624   muscleSkeletal  #7A67EE  chr12 40572709        40572710  rs7974522       .       chr12   40618812        40618813  LRRK2   +
    chr12    40579899      40618813        rs17461492/LRRK2/muscleSkeletal  0       0.624   muscleSkeletal  #7A67EE chr12 40579899        40579900  rs17461492       .       chr12   40618812        40618813  LRRK2   +
    chr12    40614433      40618813        rs76904798/LRRK2/nerveTibial  0       0.625   nerveTibial  #FFD700       chr12 40614433        40614434  rs76904798       .       chr12   40618812        40618813  LRRK2   +
    chr12    40618812      40652520        rs2723264/LRRK2/lung  0       1.839   lung     #9ACD32  chr12      40652519        40652520  rs2723264       .       chr12   40618812        40618813  LRRK2   +

  2. Click the "submit" button.

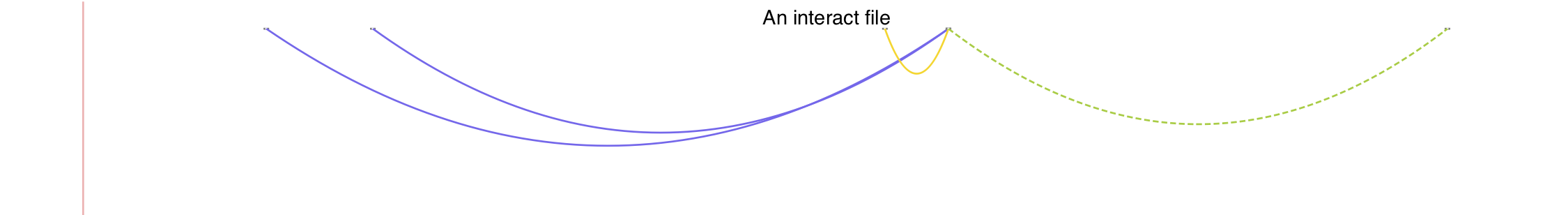

After the file loads in the Genome Browser, you should see four interactions displayed; four variants interacting with the same gene (LRRK2). Hovering the mouse over the curve peak of an interaction will display the interaction name (SNP/gene/tissue). Hovering over an interaction end will show the name of the end region (e.g. SNP or gene). Clicking at one of the hoverable regions will show the details page for the interaction. The interactDirectional setting causes reverse direction interactions (where target precedes source) to be displayed as dashed lines. In this example, the green (lung) interaction is in the reverse direction.

Example #2

In this example, you will create an interact custom track using example chromatin interaction data. This type of data is non-directional and commonly would represent a single experiment, with the interaction score being of interest. The settings below display using the gray-scale coloring feature, where the darkness of the interaction is based on the score.

  1. Paste the following track line into the custom track management page for the human assembly hg19.

    track type=interact name="interact Example Two" description="Chromatin interactions" useScore=on maxHeightPixels=200:100:50 visibility=full
    browser position chr3:64,562,440-64,642,288
    chr3    64496901        64584378        .       375     3       .       0       chr3    64496901        64498901        .       .       chr3    64581378        64584378        .       .
    chr3    64568052        64569134        .       400     3       .       0       chr20   52552477        52556062        .       .       chr3    64568052        64569134        .       .
    chr3    64596901        64615378        .       175     3       .       0       chr3    64596901        64600855        .       .       chr3    64612677        64615378        .       .
    chr3    64623042        64636663        .       800     4       .       0       chr3    64623042        64625153        .       .       chr3    64632961        64636663        .       .

  2. Click the "submit" button.

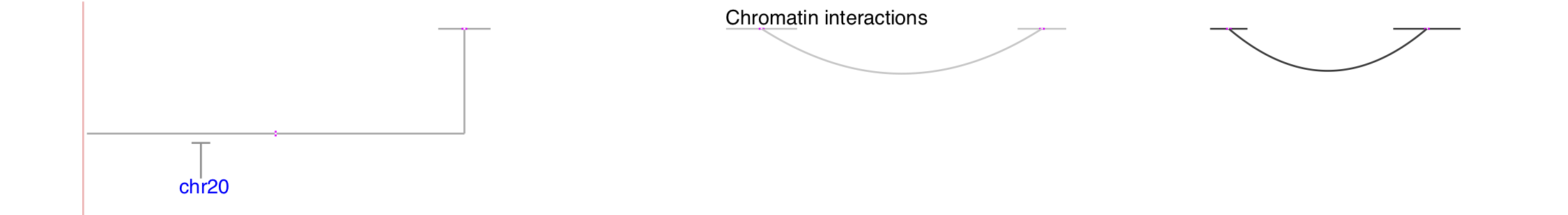

After the file loads in the Genome Browser, you should see four interactions displayed on chromosome 3. Two of the interactions have both interacting regions in the browser view, and two have a single region. One of these interacts across chromosomes (with a region on chromosome 20), and the other with a region outside of the browser window (indicated by rectangular connector). The darkness of the interaction indicates the strength of the interaction. Also see the graphical representation of each column of this example data below.

Example #3

In this example, you will create a bigInteract track out of an existing bigInteract format file, located on the UCSC Genome Browser http server. This file contains data for the hg19 assembly. This example also contains the interactUp=true setting to flip the arcs of the interact display.

To create a custom track using this file:

  1. Construct a track line referencing the file and set the browser position to show region of interest in the file:

    track type=bigInteract interactUp=true name="interact Example Three" description="A bigInteract file" useScore=on visibility=full bigDataUrl=http://genome.ucsc.edu/goldenPath/help/examples/interact/interactExample3.inter.bb
    browser position chr3:63,820,967-63,880,091

  2. Paste the track line into the custom track management page for the human assembly hg19.
  3. Click the "submit" button.

After the file loads in the Genome Browser, you should see a number of interactions, all arching as hills instead of valleys, with some curved and many rectangular indicating a connector to a region outside of the browser window. Press the 10x zoom out button to see the full connections.

Example #4

In this example, you will use an example BED file to create a bigInteract file, allowing the data to be remotely accessed and exist within a track hub. The track settings for bigInteract on a hub can be viewed here.

  1. Download the example file here.
  2. Download the fetchChromSizes and bedToBigBed programs from the utilities directory appropriate to your operating system.
  3. Use fetchChromSizes to create a chrom.sizes file for the UCSC database you are working with (hg19 for these examples). Alternatively, you can download the chrom.sizes file for any assembly hosted at UCSC from our downloads page (click on "Full data set" for any assembly). For example, the hg19.chrom.sizes file for the hg19 database is located at http://hgdownload.soe.ucsc.edu/goldenPath/hg19/bigZips/hg19.chrom.sizes.
  4. Save the autoSql file interact.as to your computer. If you want the column labels to reflect non-directional interactions, you can change the default variable names from 'source...' and 'target...' to 'region1...' and 'region2...'.
  5. Run bedToBigBed to create the bigInteract file:

    bedToBigBed -as=interact.as -type=bed5+13 interactExample4.inter.bed hg19.chrom.sizes interactExample4.inter.bb

  6. Move the newly constructed bigInteract file to a web accessible http, https, or ftp location.
  7. Construct a custom track line with a bigDataUrl parameter pointing to the newly created bigInteract file.

    track type=bigInteract name="interact Example Four" description="A bigInteract file" useScore=on bigDataUrl=/interactExample4.inter.bb visibility=pack
    browser position chr3:63,820,967-63,880,091

  8. To fully take advantage of creating a bigInteract file, create a Track Hub and use a stanza such as the following:

    track exampleInteractTrack
    type bigInteract
    visibility full
    shortLabel exInteract
    longLabel Example interact track
    spectrum on
    scoreMin 175
    maxHeightPixels 300:150:20
    bigDataUrl interactExample4.inter.bb


Understanding the interact file format

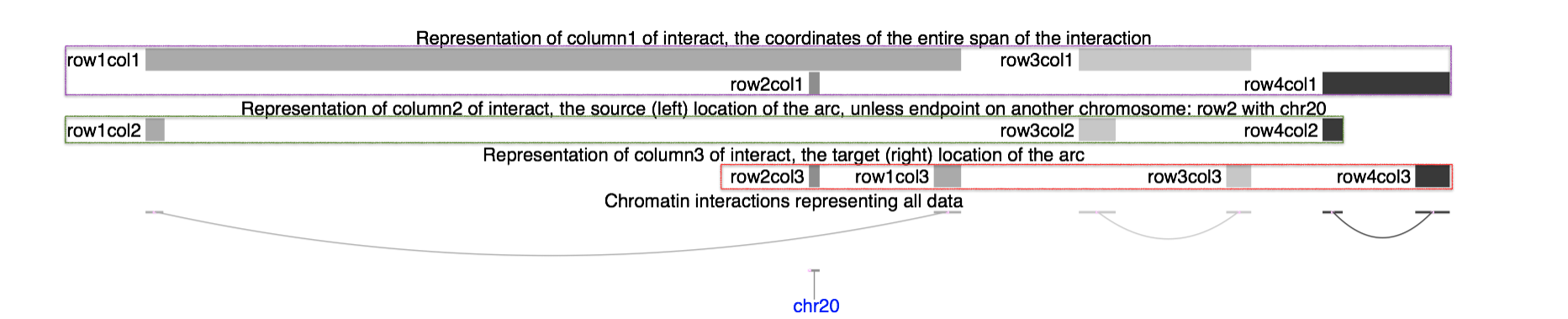

This graphic represents the data in Example #2 with boxes around columns of data, separately illustrated as individual custom tracks in the lower image.

The interact file format has 18 fields where the first 5 fields (box column1) are standard BED format fields, which define the span of the interaction to be viewed on a chromosome. In the below image, see the representation of box column1 and how it spans the length of each arc. Next, there are 3 fields for value, exp, and color before two sets of 5 fields that specify the coordinates, name, and strand of the source (box column2) and target (box column3) data, defining the endpoints of each interact arc. In the below image, the box column2 represents the left foot of each arc while the box column3 represents the right foot of each arc. The second row of the example data denotes an interaction to another chromosome, chr20, and thus is not represented by an arc.

Sharing your data with others

If you would like to share your interact/bigInteract data track with a colleague, learn how to create a URL by looking at Example 6 on this page.

Extracting data from the bigInteract format

Because bigInteract files are an extension of bigBed files, which are indexed binary files, it can be difficult to extract data from them. UCSC has developed the following programs to assist in working with bigBed formats, available from the binary utilities directory.

As with all UCSC Genome Browser programs, one can type the program name (with no parameters) at the command line to view the usage statement.

Troubleshooting

If you encounter an error when you run the bedToBigBed program, check your input file for data coordinates that extend past the end of the chromosome. If these are present, run the bedClip program (available here) to remove the problematic row(s) in your input file before running the bedToBigBed program.
